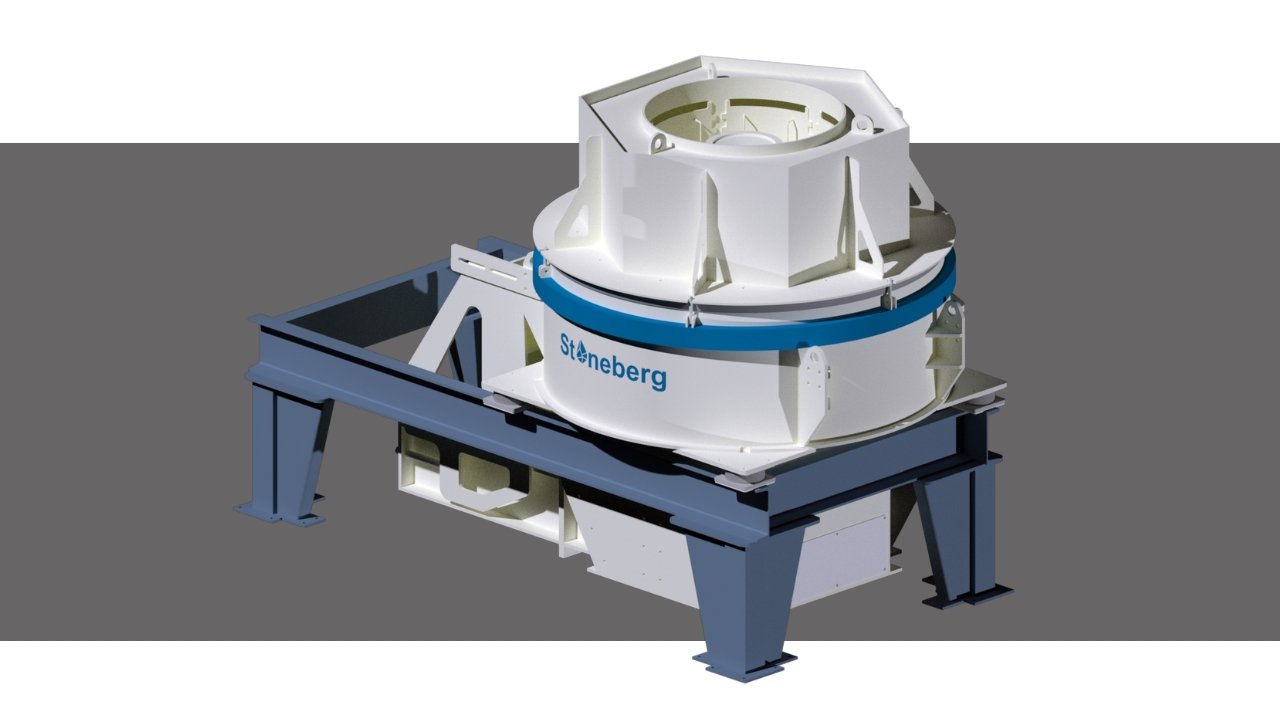

Vertical Shaft Impact Crusher

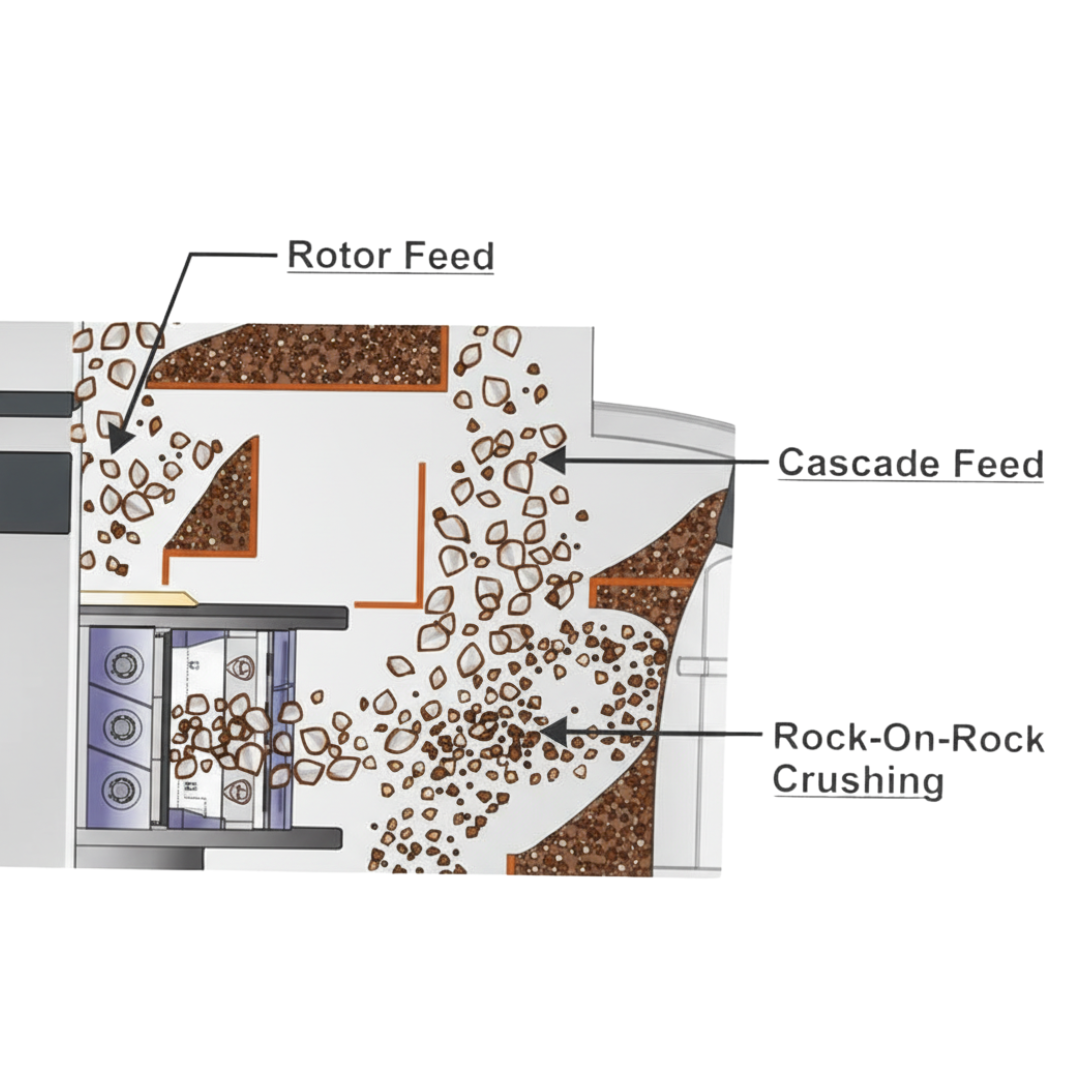

Our Vertical Shaft Impact Crusher is engineered for high-quality M-Sand production, reduced wear costs, and superior shaping performance. With a robust Rock-on-Rock crushing chamber and efficient cascade feed system, it delivers exceptional productivity with lower power consumption.
Salient Features
Application Specification
| Model | Max. Feed Size (mm) | Capacity (t/h) | Power (hp) | Approx. Weight (ton) |
|---|---|---|---|---|
| VI-100 | 15-24 | 60-110 | 100-120 | 5.0 |
| VI-150 | 17-24 | 100-150 | 120-150 | 6.5 |
| VI-200 | 24-25 | 150-200 | 180-215 | 8.5 |
| VI-250 | 28-30 | 200-250 | 250-270 | 9.1 |
| VI-300 | 32-35 | 250–300 | 300-335 | 12.0 |
For more details regarding models and specifications please
download the product catalogue.
Download Catalogue ⬇
