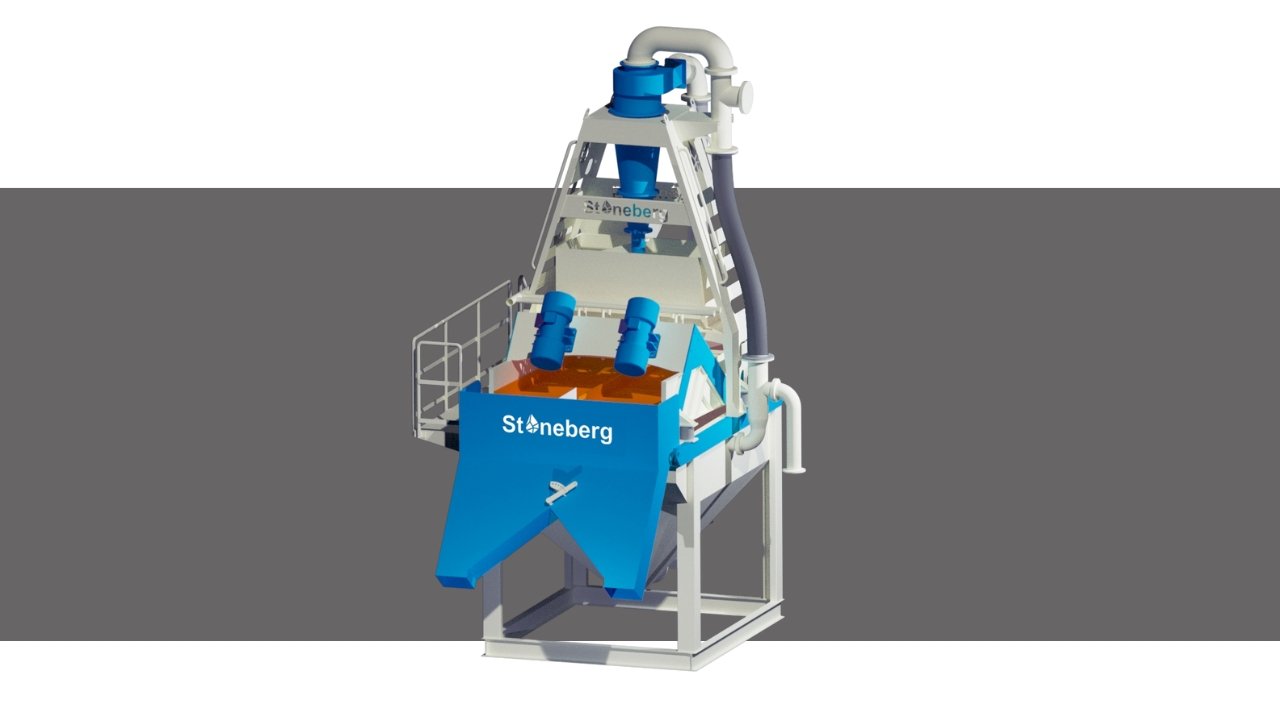

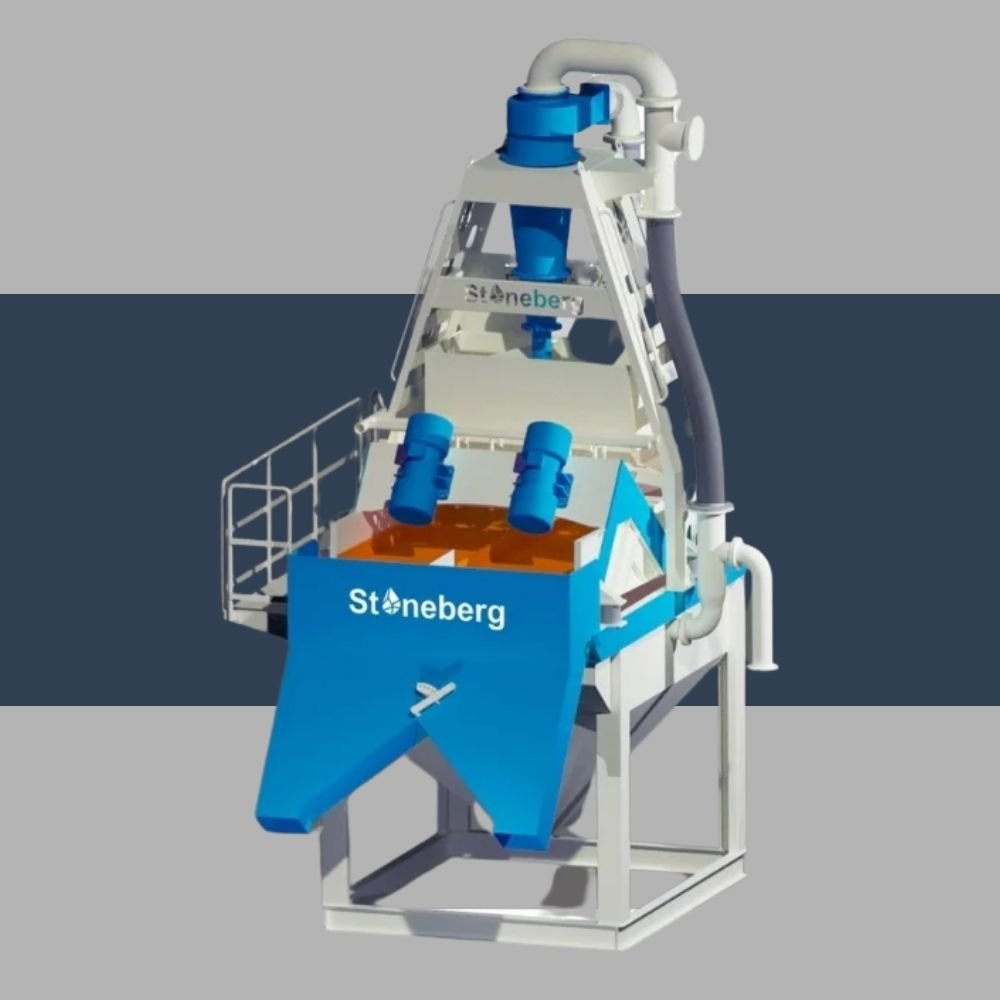

Hydro Cyclone Sand Washing Plant
Our Hydro Cyclone Sand Washing Plant ensures maximum efficiency with precise separation of silt and clay, enhanced durability through Rubber/PU-lined cyclones, and improved water recovery. Designed with a high-discharge configuration, it eliminates the need for a secondary pump while delivering consistent, high-quality washed sand.
Salient Features
| Application Specification | ||||
|---|---|---|---|---|
| Model | Vortex-100 | Vortex-120 | Vortex-150 | Vortex-180 |
| Capacity (TPH) | 25-30 | 45-50 | 60-75 | 100-110 |

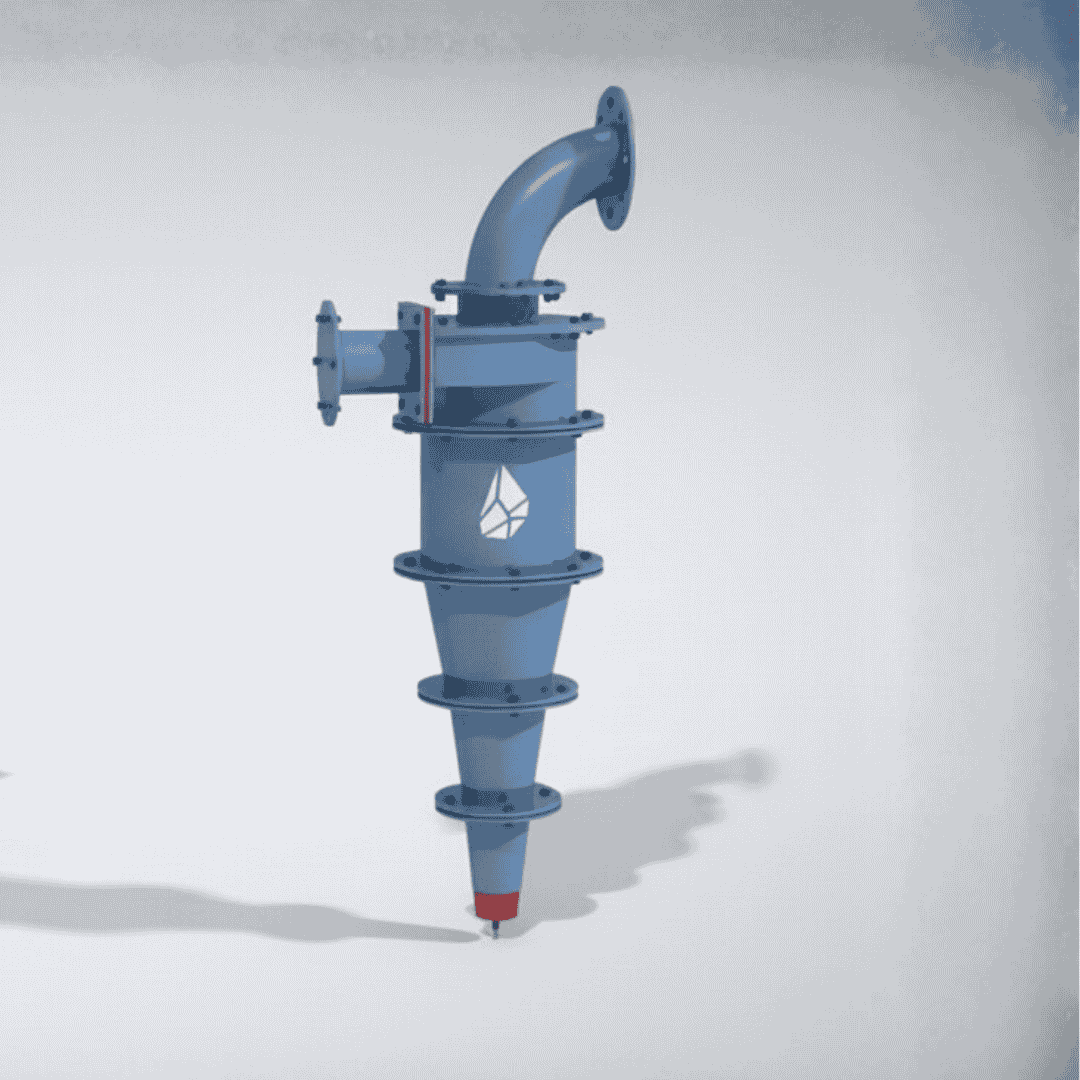

| Hydro Cyclone Size (mm) | 400 | 400 | 500 | 600 |

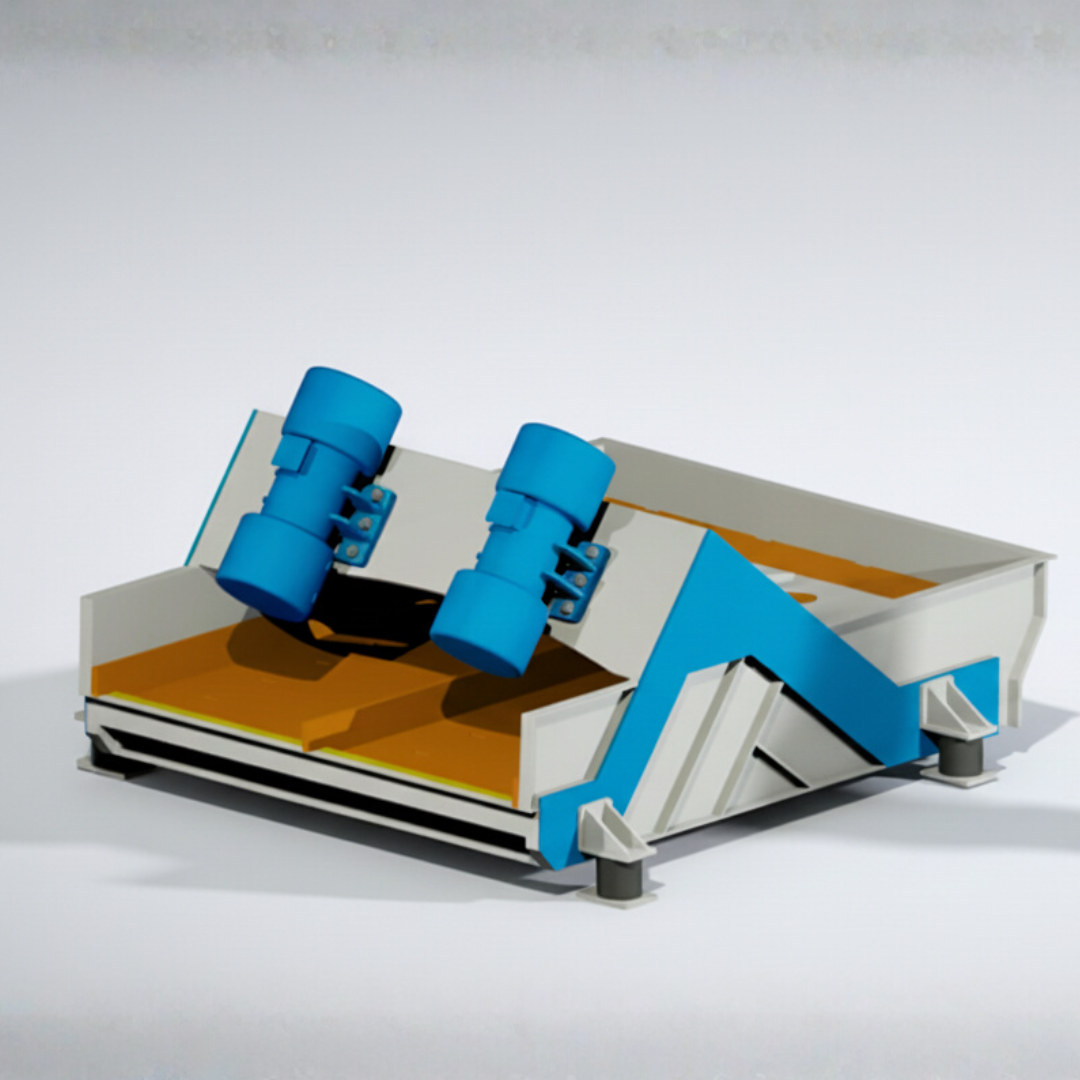

| Dewatering Screen Area (mm) | 2200 × 1500 | 2400 × 1900 | 2800 × 2000 | 3600 × 2400 |
| Slurry Pump Size (inch) | 4 × 3 | 4 × 3 | 6 × 4 | 8 × 6 |
| Slurry Pump Power (hp) | 20 | 30 | 40 | 60 |
| Slurry Pump Flow Rate (m³/hr) | 90 | 120 | 190 | 280 |
For more details regarding models and specifications please
download the product catalogue.
